Automatic Differentiation for Image Registration

This blog post was written by Cash Cherry, Warin Watson, and Rachelle Lang and published with minor edits. The team was advised by Lars Ruthotto. In addition to this post, the team has also given a midterm presentation, filmed a poster blitz video, created a poster and written a manuscript.

Image Registration

Image registration is the problem of finding a transformation which best “aligns” one image with another image. See FAIR for more detail on the problem. Some direct impacts of registration include

• Medical Imaging: Accurate diagnosis, treatment planning, and monitoring of diseases.

• Remote sensing: Analyze changes in the environment, such as deforestation, urbanization, and disaster assessment.

• Computer Vision and Robotics: Object recognition, 3D reconstruction, and augmented reality applications.

Our Contributions

Over the course of the eight-week REU program, our team successfully implemented a multitude of image registration tools into working code. The variety of tools we implemented showcases how machine learning frameworks like PyTorch and JAX simplify code and saves programming time. Particularily, we highlight how auto-differentiation makes programs simpler. Below, we outline three different projects we pursued during the program.

Homotopy Optimization

The far left column shows the template $\mathcal{T}$, to be aligned with the reference $\mathcal{R}$. The middle column shows a non-ideal solution, a local minimizer. The far right column shows how with homotopy, a global minimizer can be obtained.

The main challenge in image registration is that the problem often lacks a clear or unique solution, and the approach to solving it is not straightforward. However, the problem becomes simpler when the images are blurred or smoothed. Computing the best transformation, or global minimizer, for a highly smoothed version of the image is more straightforward. Homotopy methods take advantage of this by first finding a global minimizer when the images are very smooth, and then tracing the path of the global minimizer through more and more detailed versions of the image back to the original problem. The figure above demonstrates that without homotopy optimization, we find a non-ideal transformation, but with homotopy omptimization, we can achieve a satisfactory one.

The difficulty with implementing homotopy optimization for image registration lies in having to compute a Hessian matrix, which is a laborious process to derive. However, this is made simpler with automatic-differentiation.

Super Resolution

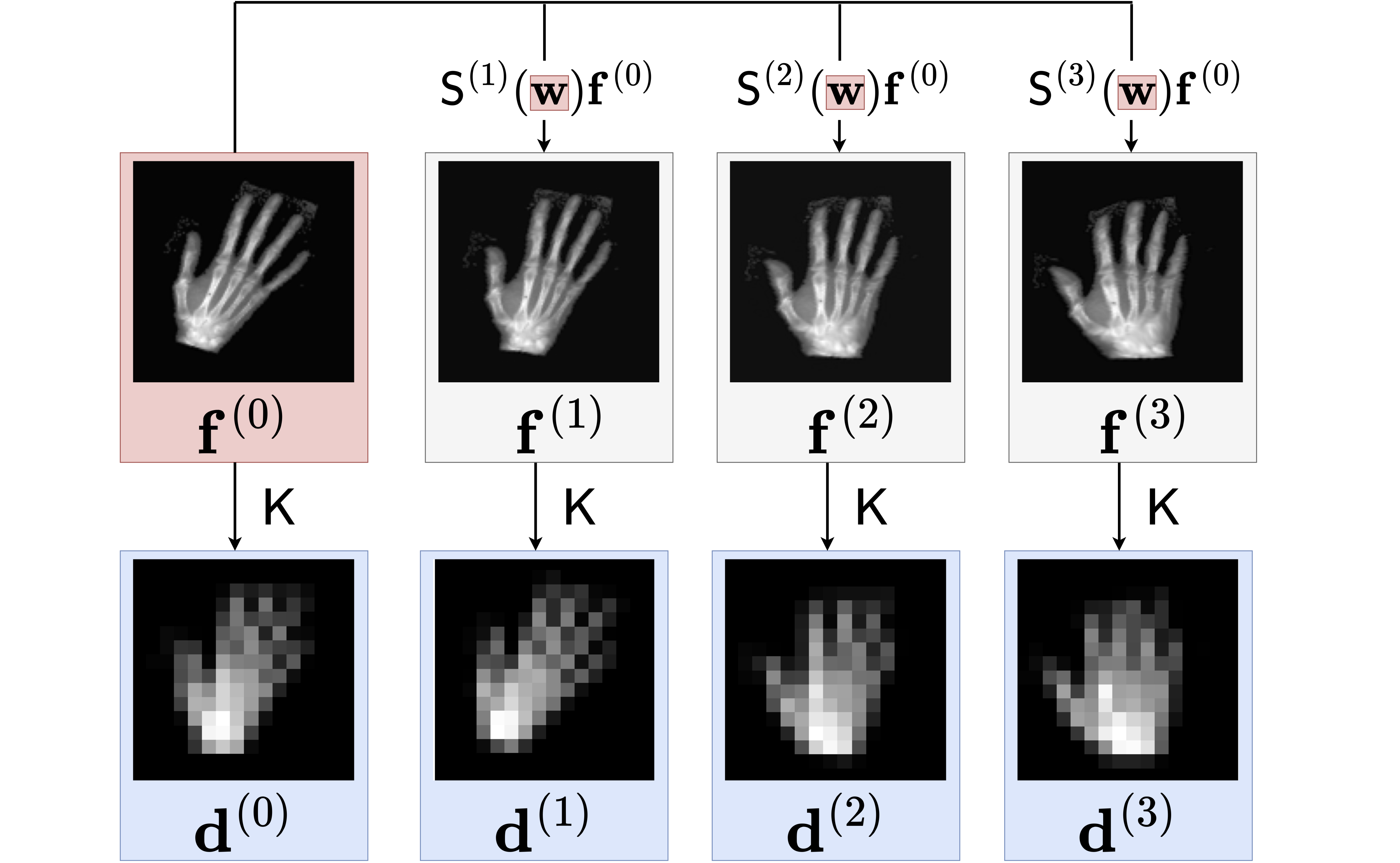

Given a sequence of low resolution images of a subject in motion, the goal of super-resolution is to constructa high resolution of the first frame of the sequence. For example, a super resolution algorithm would be able to construct a high resolution image of a heart given only low resolution images taken at different points in time as the heart beats.

The super-resolution problem is like the image registration problem in that the goal is to transformations that align images. Particularily, we find a transformation for each low resolution image that aligns it with the high resolution image. But since the high-res image is unkown, we construct it simultaneously, optimizing for both the transformations and the high resolution image together.

We employ advanced techniques like variable projection to enhance the optimization process, improving the accuracy and efficiency of super-resolution.

Registration with Intensity Dynamics

In medical imaging, a contrast agent is often injected at the beginning of a sequence of images taken over time. This leads to observable dynamics - intensity changes over time - which contain medically relevant information. Correctly observing these dynamics requires tracking the same region through each image, which makes image registration important for this problem. However, to solve a registration problem, we have relied on the assumption that intensity is preserved- that is, that no such dynamics are present (There are some interesting math connections between intensity preservation and Neural ODEs).

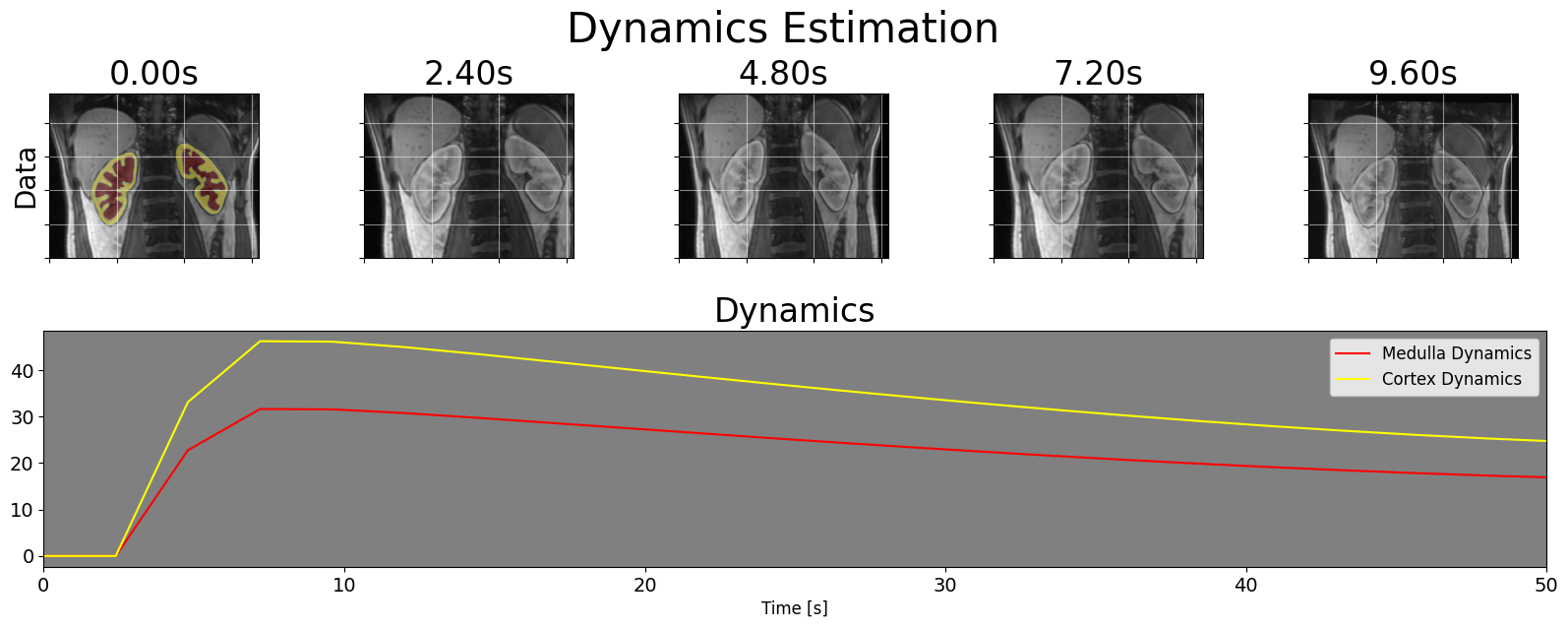

The synthetic data in the above figure shows the data typical of this problem- the medulla and cortex of the kidneys experience different intensity changes over time after the injection of contrast. The original MRI is from Figure 4 of Registration of Dynamic Contrast Enhanced MRI with Local Rigidity Constraint.

This problem is of the same mathematical form as the Super Resolution problem. Previous work has used similar techniques as in super-resolution to estimate maps of parameters in various dynamical models. We are working on estimating the intensity changes directly.

Conclusion

In implementing three image-registration related problems with python machine learning tools, we have demonstrated the benefits of using these tools to further improve the state of image-registration. We have laid the groundwork for using homotopy methods for image registration, and have implemented variable projection with automatic differentiation. We hope that image registration researchers continue to take advantage of these tools in the future.
